Basic parameters

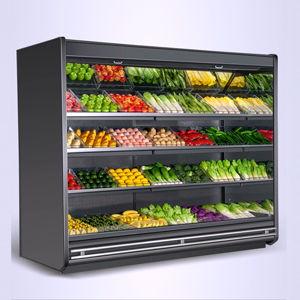

Type	Refrigerated Multideck Cabinet	Model Model	SG09S3
Design condition	3（25℃，60%RH）	temperature range Temperature range	H1(1~10℃)
Energy Efficiency Grade	3	Refrigeration mode Refrigerating system	Air cooling Air-Cooling
（mm) Width	1500/2000/2500/3750 ☑ custom	（L）Depth	800/900/1000 ☑ custom
（mm) Height	1900/2050 ☑ custom	（L）Effective Volume	-
Cabinet parameters
Cabinet /color	Black / White / grey ☑ custom	External Cabinet material	SGCC
Internal Cabinet material	SGCC	(mm) front end heigth	360
foaming	cyclopentane	Inside shelf	SGCC
Pallets	5	Pallet weight	100KG/m²
Pallet Bearing	150KG/m²	Side panel	G: 23mm S： 36mm G: Glass Side Plate Thickness 23 mm S: Foamed Side Plate Thickness 36 mm
Silk Printing Color of Side Plate Glass	Silver gray	Glass	19mm LOW-E hollow glass
Foot	Foundation bolt & Castor wheel	Night curtain	Deceleration curtain
(kg) Gross weight	180KG/1000mm
Refrigerating system
Compressor	Emerson/Panasonic ☑ custom	temperature Evap Temp ℃	-10℃
Refrigerant	R404A	（g）Refrigerant charge	-
Evaporators	Copper Tube with aluminum fins	Condenser	Copper Tube with aluminum fins
Throttle modes	danfoss	temperature Temperature control	Electronic temperature controller
Defrost	Off-Cycle defrost	Defrost water treatment	Drain pipe
Electric parameter
Condenser Fan motor	Crew Depending on unit allocation	Evaporating fan	EBM
Lighting Canopy & Shelf	LED white X-union	power（W） Input Power	288W
Plug	16A	Plug	220V/50HZ, 380V

MDC-RL Features
Architecture:
• All welded rigid frame
• CFC-free foam injected seamless basin
• NSF leveler legs


Mechanical:
• High efficiency refrigeration system w/copper tube coils
• Energy efficient fans
• 1½” drains w/traps
• Thermometer
• Ready for remote refrigeration system with:
- Expansion valve - specify refrigerant
- Temperature sensor - specify
- Thermostat w/defrost controls & suction line solenoid
- Liquid line hand valve


Interior:
• Black/white interior
• Canopy lighting - 2 rows T-5
• Removable base display deck with product stop
• Five levels of 21” metal shelves w/rear extensions


Exterior:
• Standard color finish
• Architectural aluminum extrusion for canopy & nose


• Endpanels:
- Glass view, shared, or solid end panels
- Mirror polish or brushed stainless steel end panel interior
• Consult factory on alternative case controls
• Liquid-suction heat exchanger
• Specify for use with secondary coolant systems
• LED lighting - specify location(s)
• Interior stainless steel finish
• Under shelf lights - T-5 fluorescent or LED
• 2” acrylic product stops
• Third row of T-5 canopy lights
• Front deck light
• Exterior stainless steel, premium color, or laminate finish
• Sliding insulated rear doors for loading
• Cart bumper - specify size
• Night curtain
• Alternative case heights, lengths & options - consult factory


self service multi deck Self-Contained Options: (may increase case height)
• Condensing unit
• Electric condensate dissipator
• Digital temperature and defrost controls
